ANENG AN8205C Digital Multimeter AC/DC Ammeter Volt Ohm Tester Meter Multimetro With Thermocouple LCD Backlight Portable



ANENG AN8205C Digital LCD Multimeter Voltmeter Ammeter AC DC OHM Volt Tester Test Current
3 1/2 digital LCD screen, maximum display value 1999.
Multimeter features a clear, easy to read LCD display, with white back Light.
Portable & Compact Design.
Data retention.
Low voltage symbol display.
Background light function.
Overload protectio n.
Pass measurement.
Diode: Yes
Audion: Yes
Pass-through measurement: Yes
Data retention: Yes
Background light: Yes
Maximum display: 1999
DC voltage: 200mV – 2-20-2000-600v plus or minus 0.5%
AC voltage: 200V – 600V plus or minus 1.0%
DC current: 2m – 20m – 200m – 10A + 1.8%
Resistance: 200-2-20 k to 200 k, 2 k m Ω plus or minus 1.0%

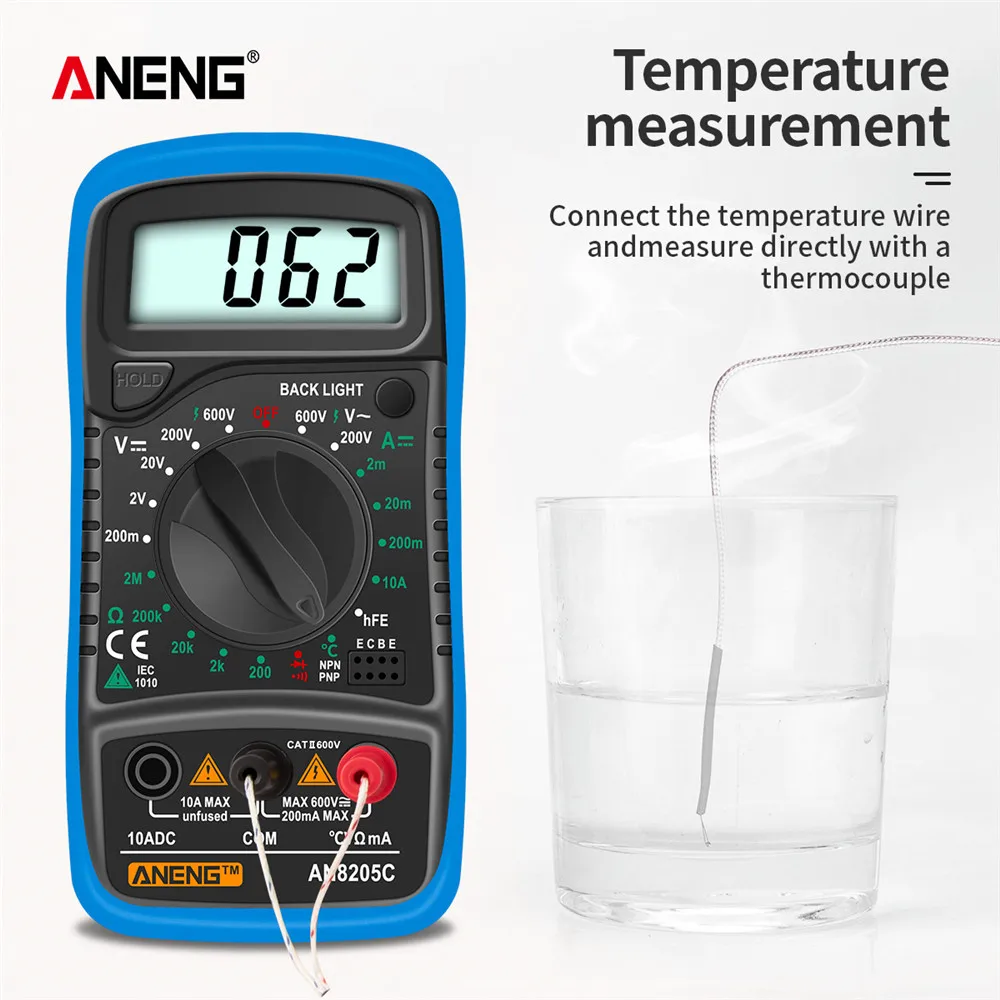

Temperature measurement: K type thermocouple, – 20 ℃ ~ 1300 ℃ (+ / – 3%)
Triode measurement: (PNP/NPN triode hFE)
Diode measurement: Yes
Pass test: Yes
Input resistance: 1 m Ω
Electric pool: 9V, 6F22 (Battery is not included)
Maximum display: 1999 (3 semi-liquid crystal display)
Display size: 45 x 18mm

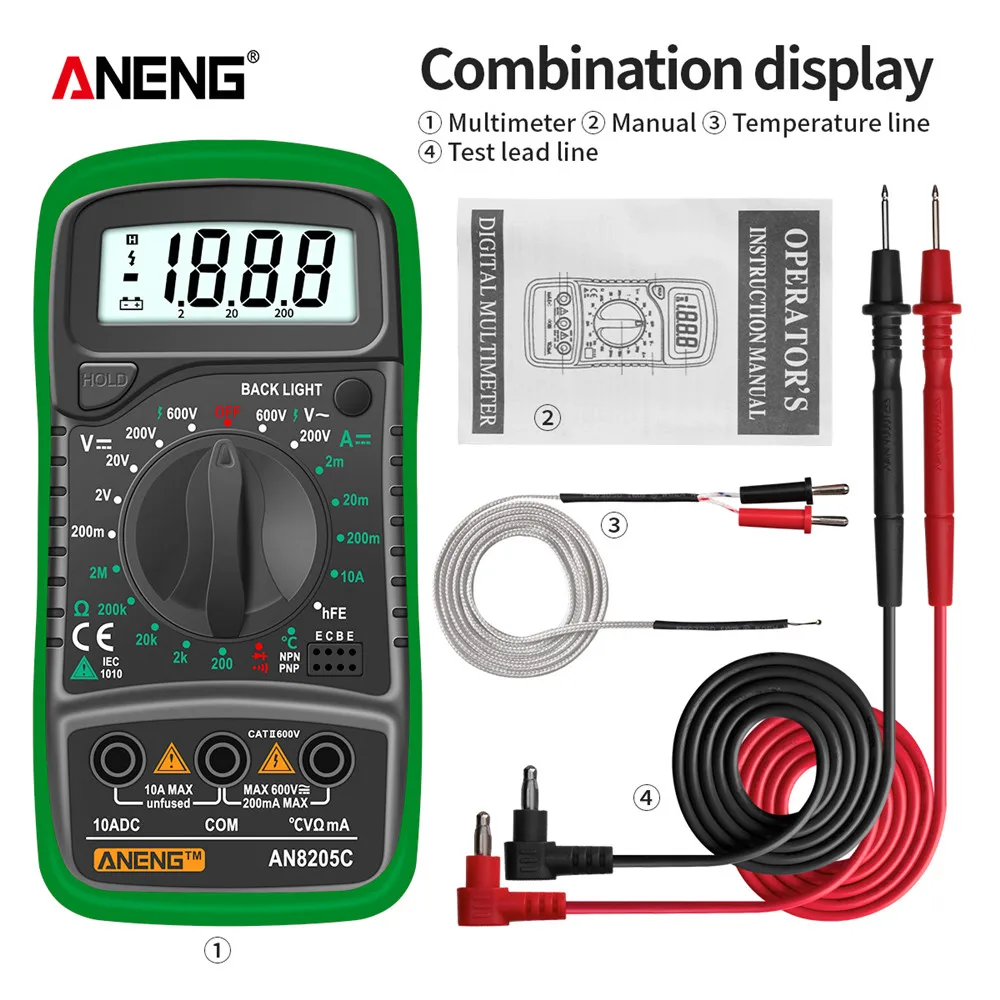

Package included:
1 x ANENG AN8205C Digital Multimeter (Battery is not included)
2 x Pair Electronic Probe
1 x User Manual

Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
There might be 0-1cm errors due to manual measurement.Please allow slight error of measurement.

Additional information

DC Current

2m – 20m – 200m – 10A

AC Current


DC Voltage

200mV – 2-20-2000-600v

AC Voltage

200V – 600V

Operating Mode

Manual mode

Measuring Capacitance Range


Measuring Resistance Range

200-2-20 k to 200 k, 2 k

Model Number

AN8205C Digital Multimeter


145 x 70 x 40mm

Operating Temperature

0 – 50 ℃

Measuring Inductance Range


Display Type

Digital display

DIY Supplies


Brand Name



Mainland China
