Description

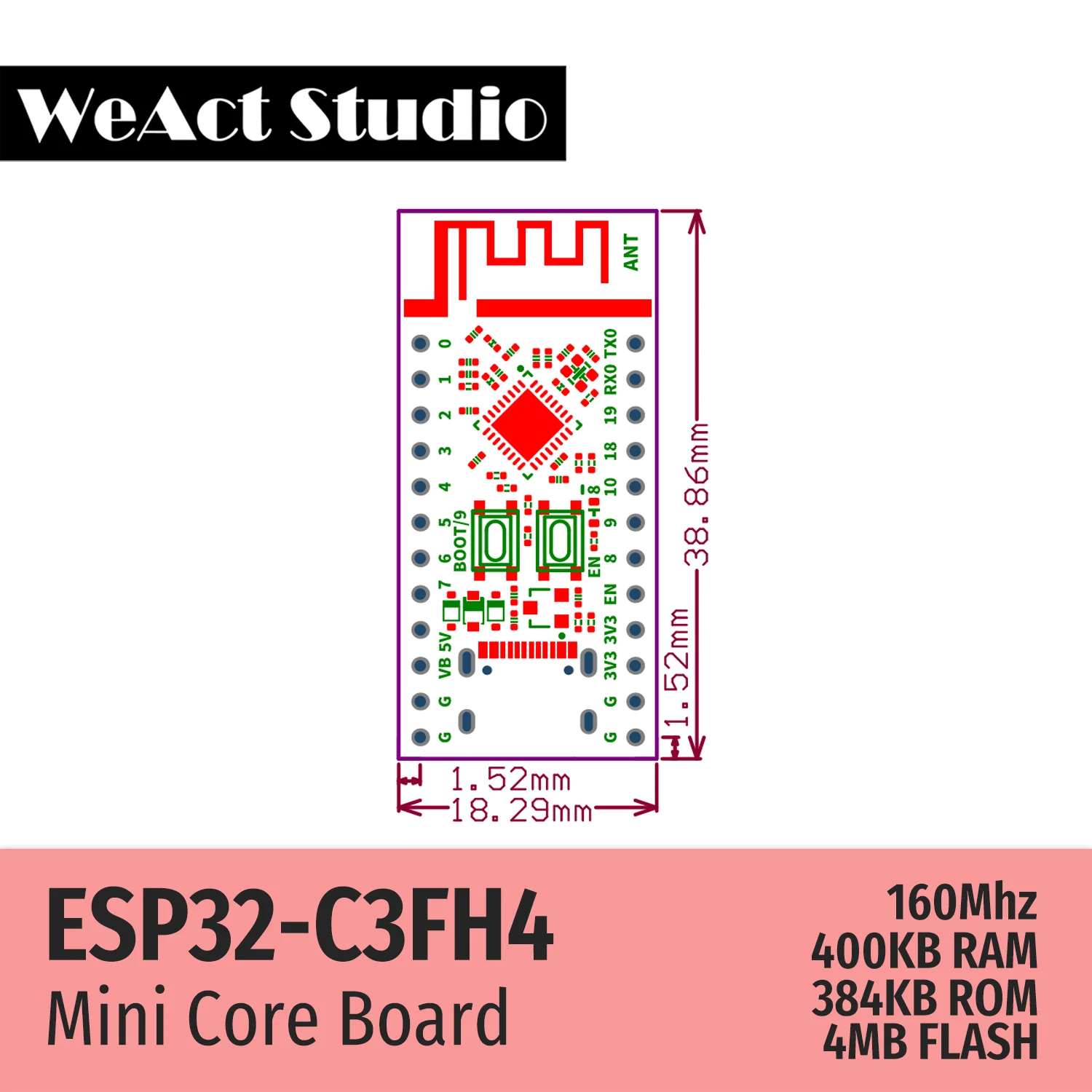

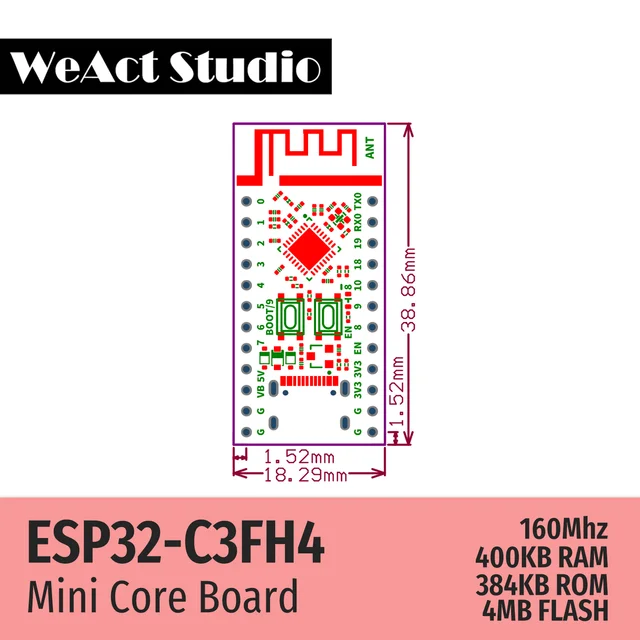

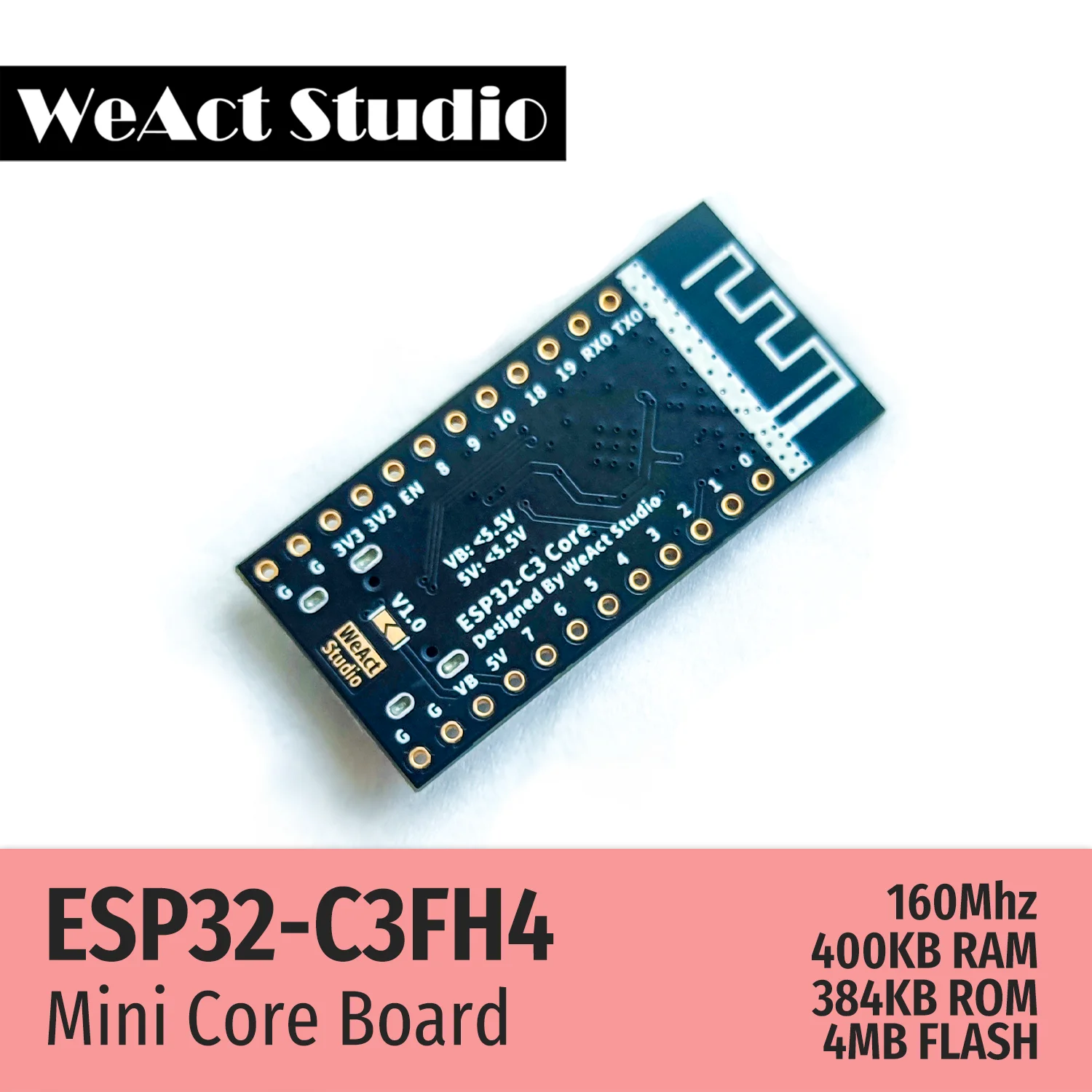

WeAct Studio ESP32-C3FH4 Core Board
RISC-V kernel, 160Mhz Max, Flash 4Mb
Supported development frameworks: ESP-IDF, Micropython, Arduino
Instructions for peripherals on board
1. Blue LED: GPIO8, Low level active
2. USB: DP GPIO19, DN GPIO18
3. The debugging Serial port is printed using USB Serial
To enter the burning mode, first hold down the BOOT key, then click EN key, and finally release the BOOT key
Data Link
//github.com/WeActStudio/WeActStudio.ESP32C3CoreBoard.git
List of shipment
1. ESP32-C3FH4 Core Board * 1
2. 12 Pin 2.54mm yellow straight insert pin * 2
