Description
Wireless Doorbell WiFi Outdoor HD Camera Security Door Bell Night Vision Video Intercom Voice Change For Home Monitor Door Phone
Wireless Doorbell WiFi Outdoor HD Camera Security Door Bell Night Vision Video Intercom Voice Change For Home Monitor Door Phone
Description:
Product model doorbell
Main control model bk7252
Sensor model gc0328
Photosensitive support
Audio input 1 channel
Audio output 1 channel
Infrared drive, max. 50mA
MicroSD card holder does not support
2 keys: doorbell key and reset key
2 indicators: equipment status indicator and charging indicator
Battery interface 1 way
Charging power DC 5V
Function and technical parameters
Parameter description
System architecture embedded FreeRTOS
Maximum resolution VGA, 640 * 480
Video coding standard mjepg
Audio coding standard g711 A
Video frame rate VGA@20fps
Day night switching mode automatic
Video preview supports 1-way P2P
Sound acquisition support
Video transmission encryption supports AES
Dingdong RF code EV1527
The infrared lamp is controlled automatically and the sensitivity level is adjustable
Infrared lamp wavelength 850nm
Distribution network mode bluetooth distribution network
Cloud storage support, three-day rolling storage by default
Mobile detection support, sensitivity level adjustable
Connection mode: 2.4GHz WiFi
Power supply mode battery power supply
Battery power detection support, voltage is lower than 3.4V, unable to wake up
Firmware upgrade supports remote upgrade
Operating temperature: – 10 ~ 45 ℃
Working humidity ≤ 95%
Specifications:

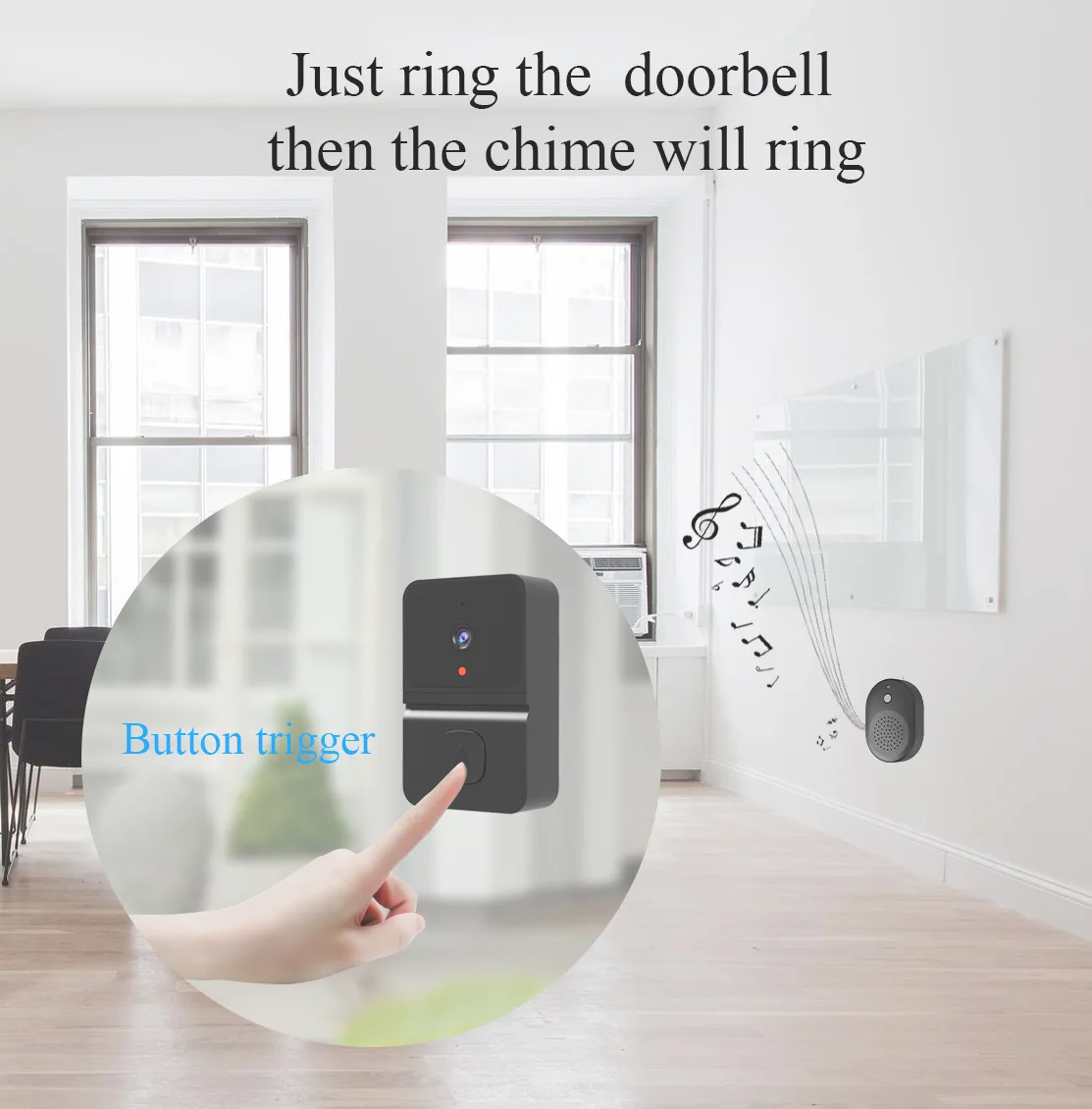

1.【Video Call】Easy to deal with visiting guests, when someone presses the doorbell, the doorbell will push notification to the phone, and the owner can enter the phone video conversation interface.

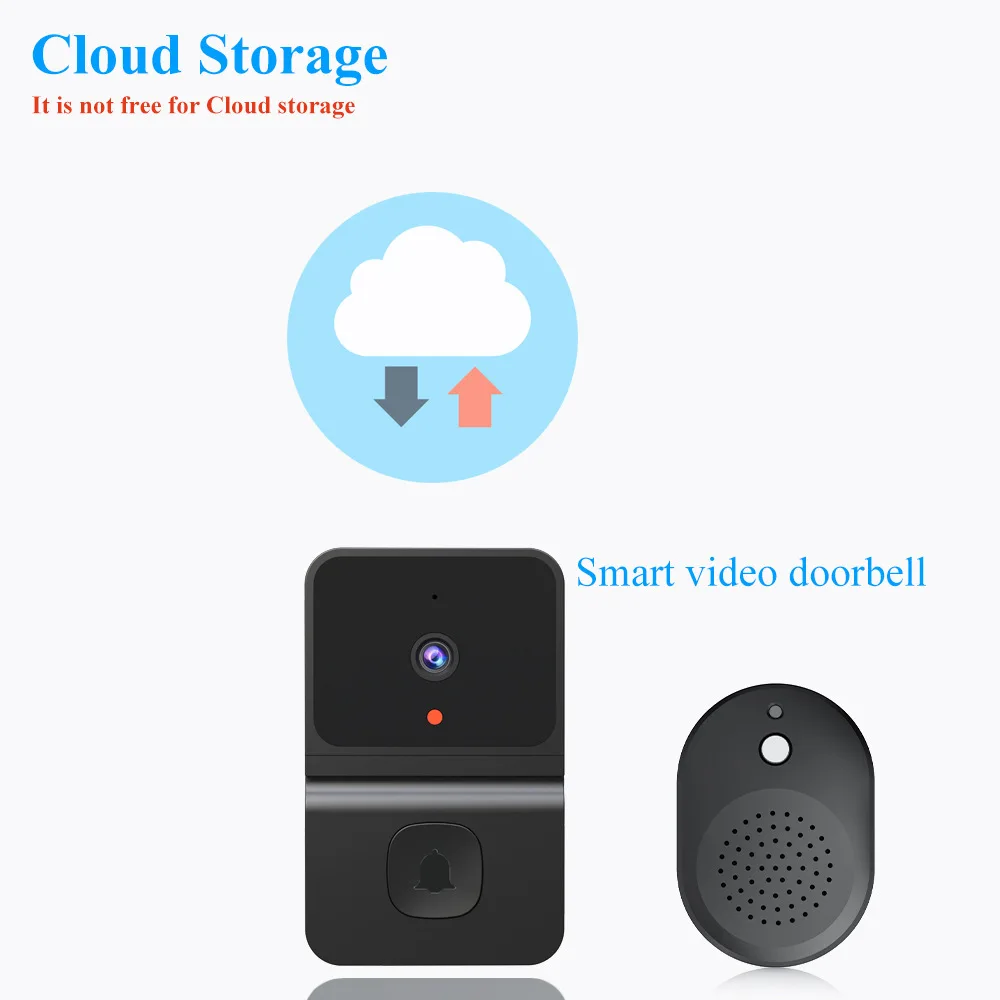

2.【Capture screen】Storage to the cloud, security protection drip. When a visitor presses the doorbell, it can capture the visitor’s picture and save the record to the cloud, so that the cell phone APP can view the past pictures at any time, which is safer and more secure.
3.【Portable Installation】Can be pasted and perforated. Support 3M adhesive backing, no need to punch holes, while supporting hole punch installation. No plugging, convenient and hassle-free.
4.【Long Standby】No disassembly cycle charging. Built-in lithium-ion high-capacity battery, standby 365 days
Say goodbye to the trouble of frequent battery replacement.
5.[ultra wide angle lens] let the doorbell clearly record the movement of the front door without missing every key picture

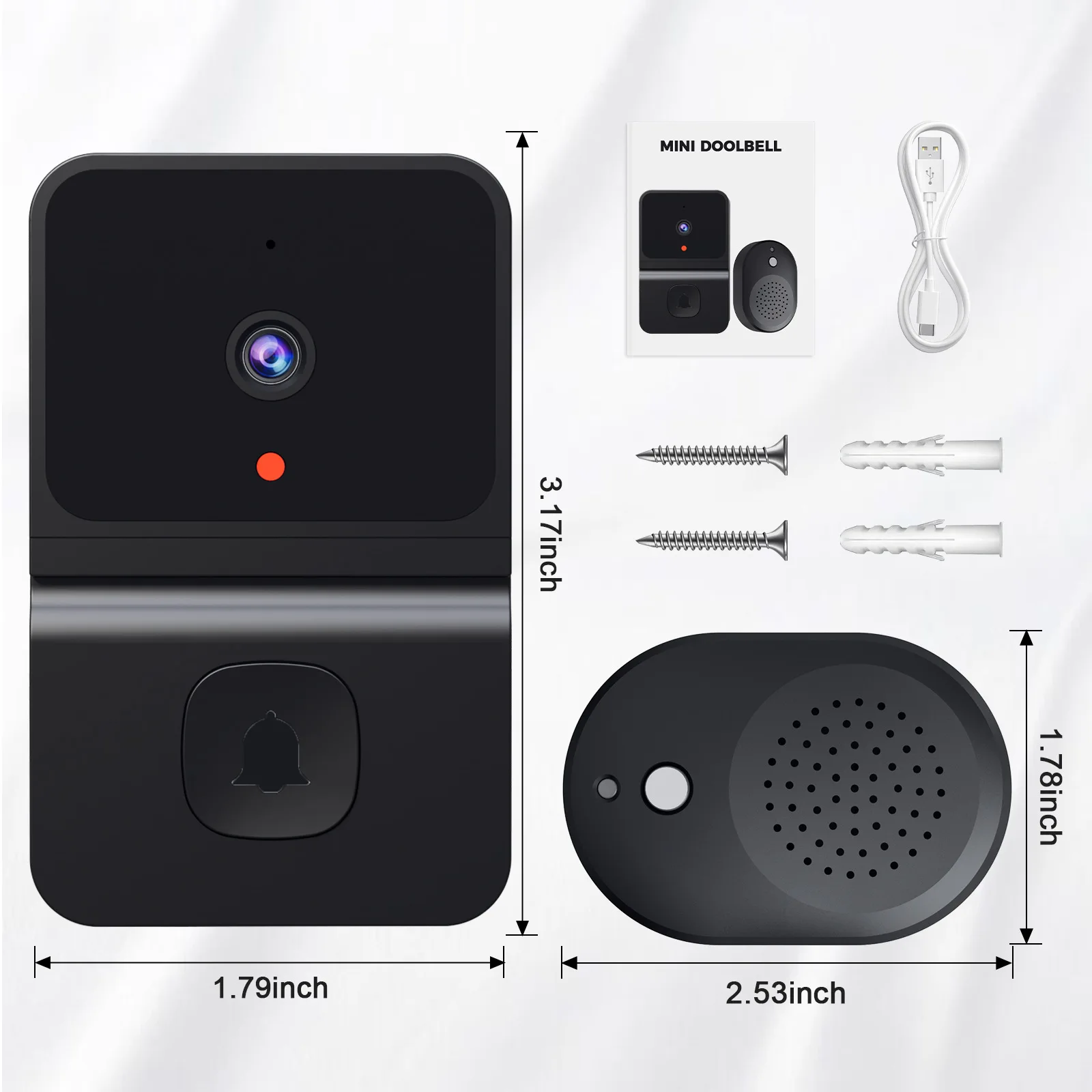

Package Included:
1 * visual doorbell,
1 * dingdong machine
1 * manual
