Description
WYING M3 Auto OBD2 GPS Head-Up Display Car Electronics HUD Projector Display Digital
Car Speedometer Accessories For All Cars
Product Functions
Note
OBD2 Version: Compatible for: Cars in OBD2 system
When you’re ready to place an order, but you don’t know whether your car is compatible with the HUD, you can contact with us! We’re glad to help you!

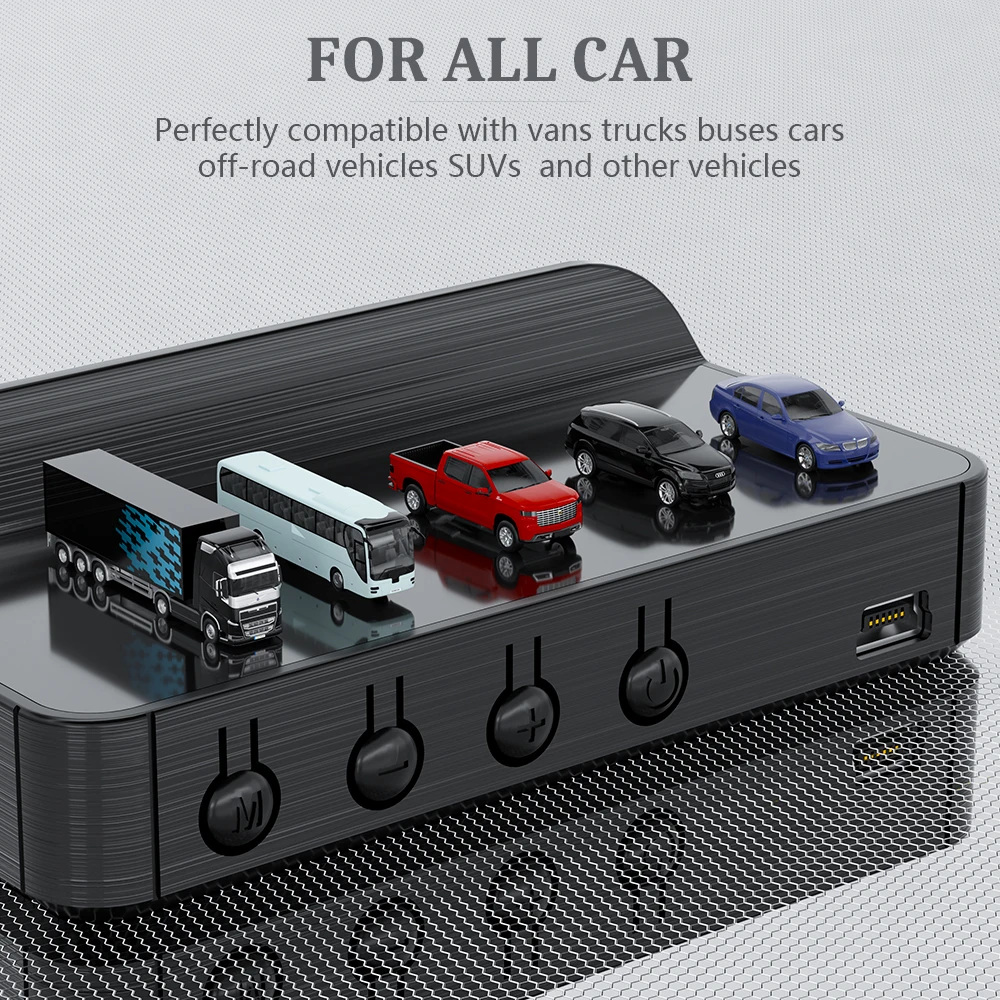

GPS Version: Compatible all cars.
OBD2 Version
It works when the car is running, and turn off when the car’s ignition is off.
OBD2 Display data: Speed, coolant temperature, voltage, mileage, clear faulty code.

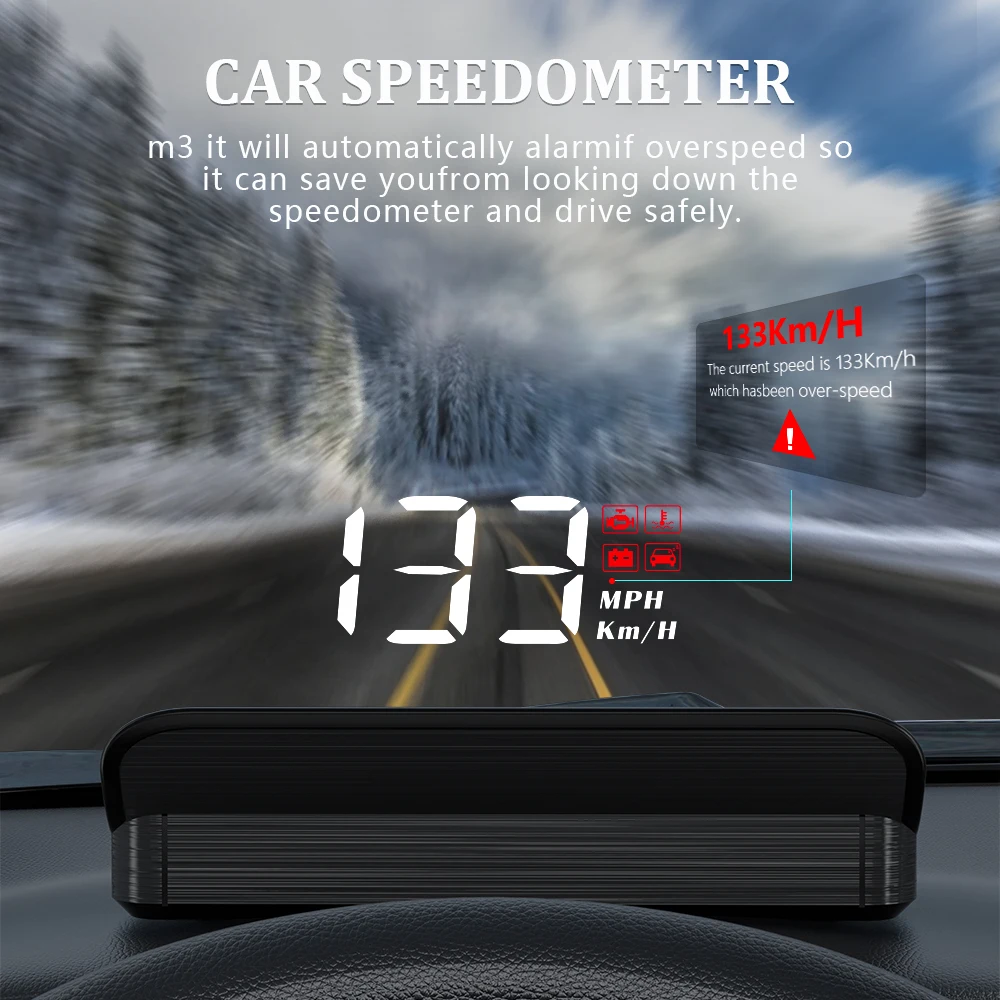

Alarms: over-speed alarm, high water temperature alarm, low voltage alarm, fault code alarm, fatigue driving alarm.
Automatically turn on or off: After the engine is turned off for 30 seconds, the HUD will automatically shut down; when the engine is started, it will automatically display after 5 seconds. Our HUD with a switch, which can be turned on and off manually. If you do not drive for a long time, it is recommended to manually turn off the HUD.

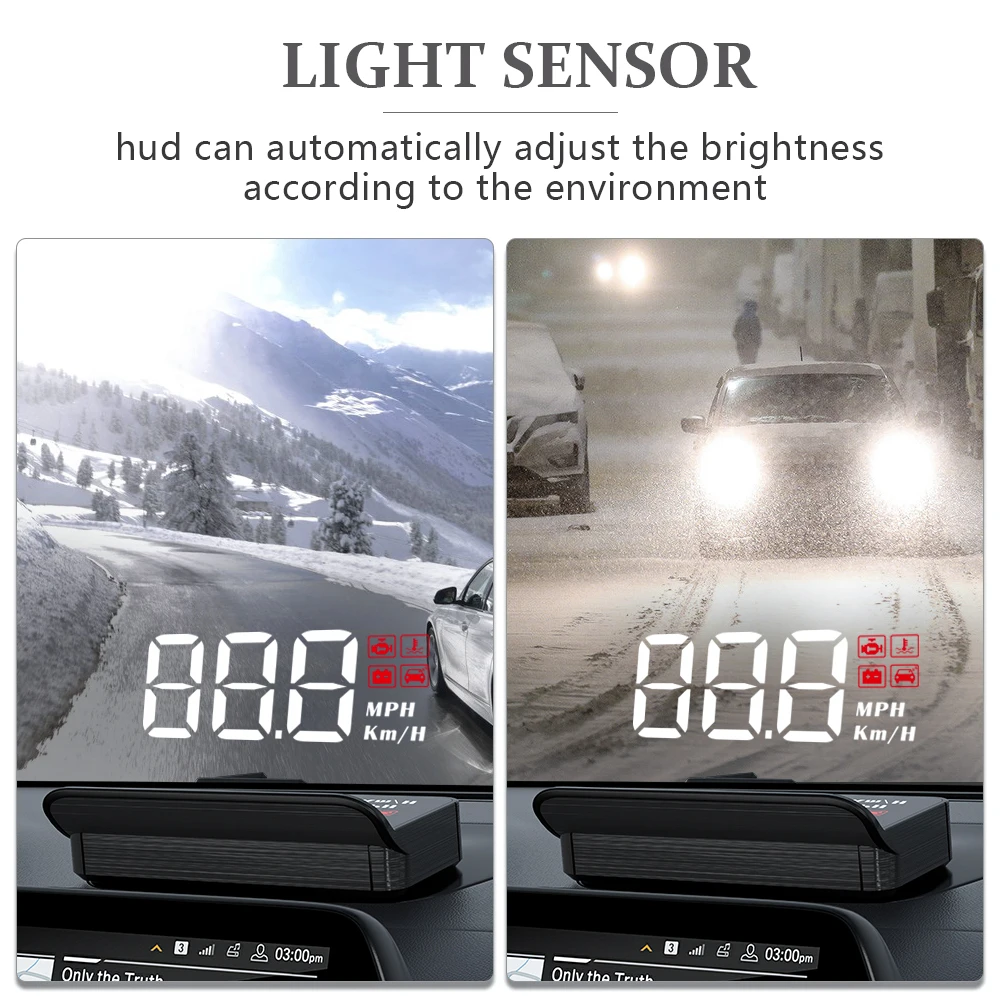

The brightness can automatically adjust by environment
GPS Version
It is compatible with all cars! And supports over-speed alarm.
Product working voltage is 5V, and it is forbidden to use a voltage higher than 5V for power supply. Some vehicles voltage are highter than 5V, it doesn’t matter. Our package included a usb cable, you need to plug usb cable in cigarette lighter, and connect it with HUD.
Number of search satellites.
Compass: N (North) E (East) W (West) S (South).
Vehicle speed display,Speed unit: MPH- mile, KM/H- kilometer.
Fatigue Driving Alarm: Fatigue driving alarm is 4 hours, user can freely set this time or turn off this alarm, setting time range: 1-8 hours.
Multi-function switch and use the newest upgrade hardware
4 major functions can be switched
Product Size
Screen Size: 3.2 inches
Display Type: Windshield
ProjectorDimension: 8.6×3.7×1.6cm

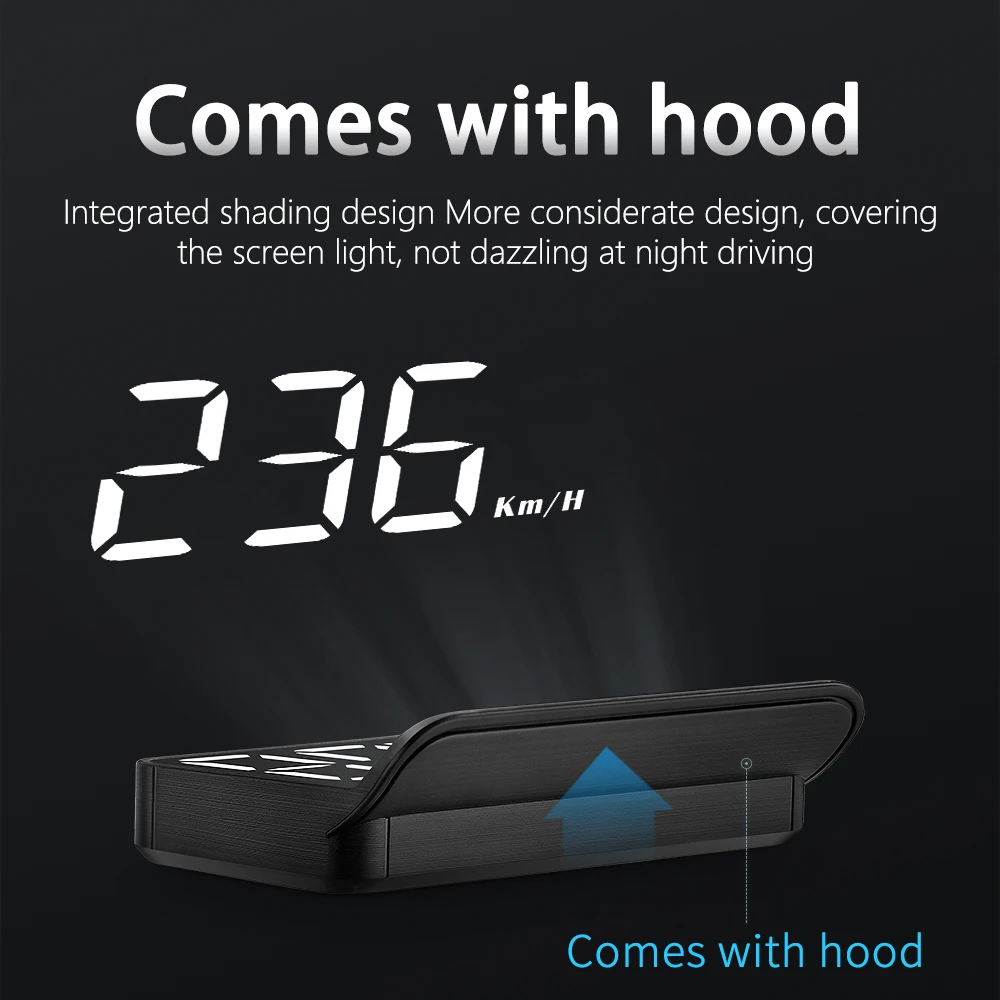

Integrated shading design
Covering the screen light, not buzzing at night driving
Easy to install
Step1: Insert the OBD socket connector.
Step2: The wire is stuffed into the A-pillar sealing strip.
Step3: Connect one end of the obd interface to the HUD and place the HUD to a suitable position.
OBD2 Version
(It is compatible with OBD2 and EOBD system, it supports over-speed alarm.)
1.Multi function: Speed, Water temperature, Voltage
2.Short Press the button “M”
To switch voltage, water temperature,vehicle speed,enter into menu setting to switch menu options or parameter values
Long Press the button “M”
To enter into menu settings (see instructions for Menu 1-12) and press 5 seconds to save and exit
3.Short Press the button “-”
Menu – and parameter value –
Long Press the button “-”
To turn on and off the buzzer(default choice is buzzer on,you can freely choose to turn on or off)
4.Engine icon, Water temperature icon
5.Voltage icon, Fatigue driving icon
6.Light sensor:HUD can automatically adjust the brightness according to the environment
7.Speed unit: MPH- mile, KM/H- kilometer
8.OBD connection port
9.Power switch
Long press for 5s to turn off,again to turn on
10.Short Press the button “+”
Menu + and parameters value +
Long Press the button “+”
Long press till the screen is all on, and the fault code is eliminated, long press again to exit
GPS Version
(It is compatible with all cars! It supports over-speed alarm!)
1.Satellite icon: After the satellite is found, it stops flashing and goes out before it can be used normally
2.Light sensor: HUD can automatically adjust the brightness according to the environment
3.Short Press the button “M”
To switch vehicle speed, satellite number, enter into menu setting to switch menu options or parameter values
Long Press the button “M”
To enter into menu settings (see instructions for Menu 1-6) and press 5 seconds to save and exit
4.Short Press the button “-”
After entering the settings, Menu – and parameter value –
Long Press the button “-”
To turn on and off the buzzer (default choice is buzzer on,you can freely choose to turn on or off)
5.Buzzer
6.Compass: N (North) E (East) W (West) S (South)
7.Vehicle speed display: display the current vehicle speed
8.Speed unit: MPH- mile, KM/H- kilometer
9.OBD connection port
10.Power switch
Long press for 5s to turn off, again to turn on
11.Short Press the button “+”
After entering the settings, Menu + and parameters value +
Long Press the button “+”
The screen is all on, and the fault code is eliminated, long press again to exit
C100 OBD2 EOBD
G100 GPS for All Cars
G1 GPS for All Cars
C500 OBD2 EOBD
T900 GPS for All Cars
P21 OBD2+GPS+INCLINE METER
Please Note:
OBD system is suitable for most cars after 2007.
OBD2 model can work for OBD2 gasoline vehicles produced after 2004 in USA, and OBD2 gasoline vehicles produced after 2008 in other countries.
OBD2 model is not applicable for the following cars:
